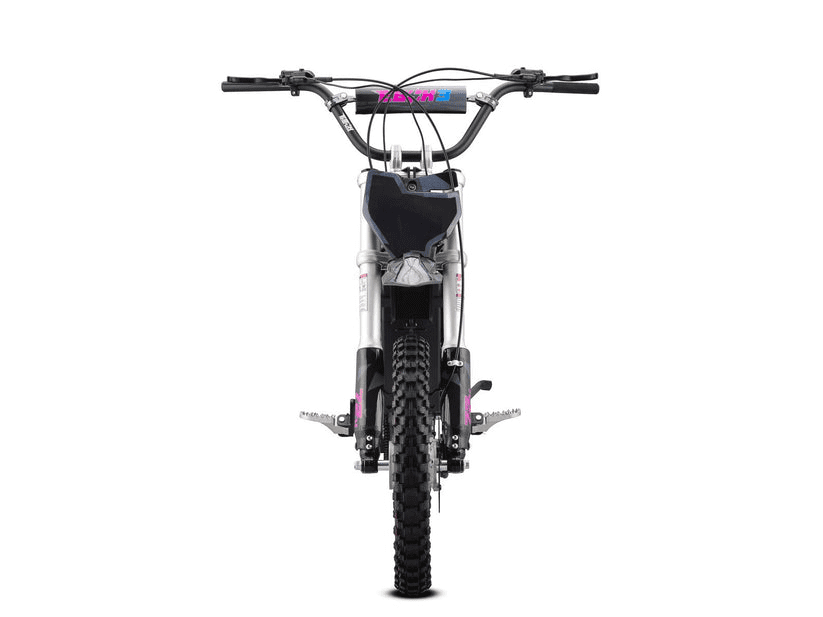

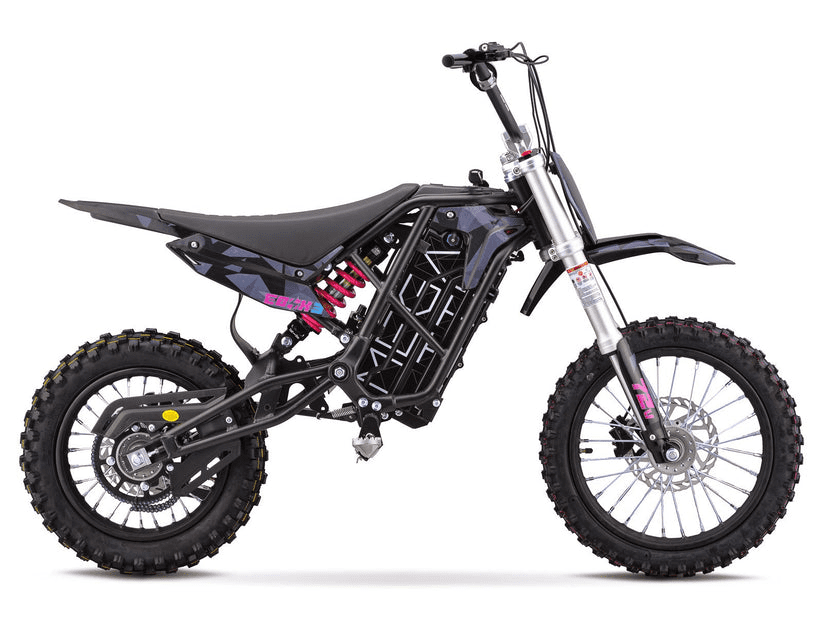

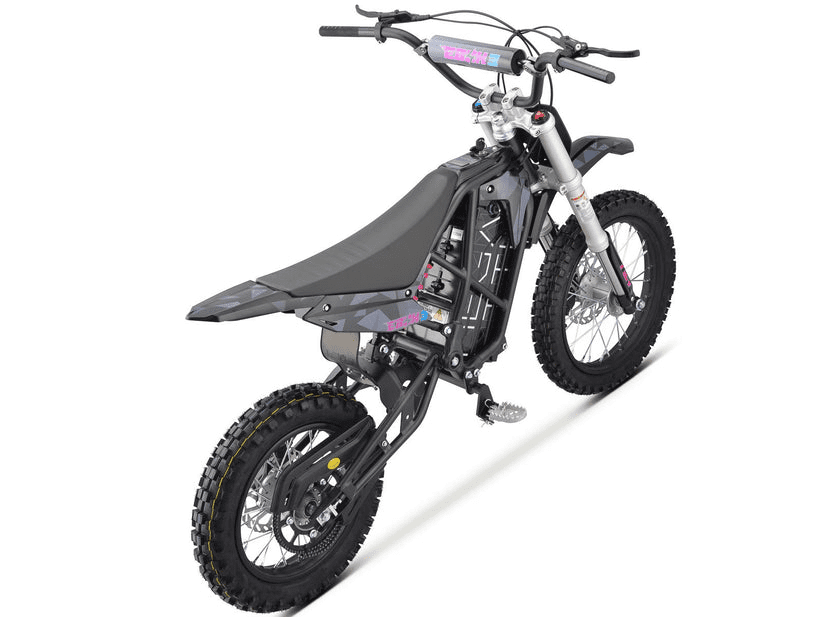

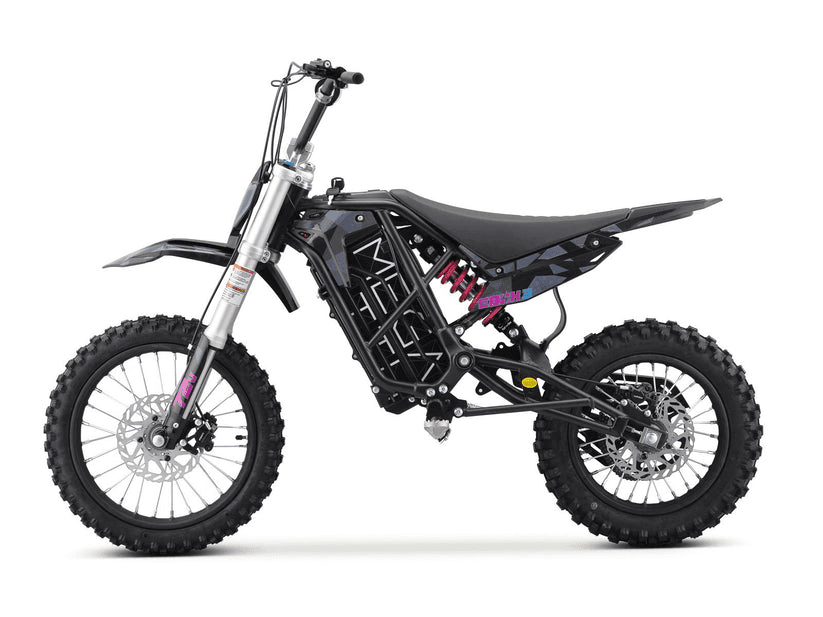

EBOX 3 MX 72v Black Megalith
$1,799.00
The Ebox 3 MX minibike cranks up performance with race-ready geometry. Longer, stiffer forks, slacker head tube angle, and tall 6061 T6 high-rise bars deliver full-size bike feel in a compact package.
Description
EBOX 3.0: The Ultimate Custom Electric Pit Bike Platform
The EBOX 3.0 delivers exceptional performance for riders who want a high-powered electric pit bike with unlimited customization potential. Designed around the Black Megalith rolling chassis, this lightweight platform combines aggressive motocross geometry with premium components for serious off-road riding.
With its slack head angle, high-rise handlebars, extended forks, and dropper footpegs, the EBOX 3 MX 72V offers responsive handling and excellent stability on jumps, corners, and technical terrain.
Whether you’re building a race-ready machine or upgrading your dream setup, the EBOX 3.0 provides the ideal foundation.
Why Choose the EBOX 3.0?
Riders choose the EBOX 3.0 electric bike because it combines compact dimensions with big-bike performance.
Key benefits include:
- Lightweight high-strength steel frame
- 55+ mph top speed potential
- Removable 72V 20Ah battery
- Premium DNM adjustable suspension
- Extended front forks for improved control
- DID drivetrain components
- Quick-release battery system
- Multiple customization options
As a result, the EBOX 3.0 appeals to motocross riders, custom builders, and off-road enthusiasts.
72V Power and High-Speed Performance
The EBOX 3 MX 72V features a removable 72V 20Ah lithium battery built with premium 21700 cells and a 180A peak output.
Paired with the right motor and controller setup, this 72V electric pit bike delivers thrilling acceleration and a top speed potential of over 55 mph.
Additional power features include:
- 84V 6A fast charger
- 4–5 hour charging time
- External speed and acceleration controls
- Quick battery removal system
Please note that the rolling chassis does not include a motor, controller, or throttle unless you select the complete build option.
Built for Motocross and Off-Road Riding
Every aspect of the EBOX 3.0 supports confident off-road performance.
The upgraded suspension package includes USD upside-down forks and a DNM 270 mm mono-shock with preload and rebound adjustment.
Additional off-road features include:
- Extended forks for larger jumps
- EBOX dropper footpegs
- High-rise 6061-T6 handlebars
- 14-inch front and 12-inch rear wheel setup
- 219H DID chain with 10T/70T gearing
Together, these components deliver excellent stability, traction, and rider control.
EBOX 3.0 vs Other EBOX Models
| Model | Battery | Type | Top Speed Potential | Best For |
|---|---|---|---|---|
| EBOX 3 MX 72V | 72V 20Ah | Rolling Chassis | 55+ mph | Custom MX builds |
| EBOX 3 Megalith | 72V 20Ah | Rolling Chassis | 55 mph | Premium styling |
| EBOX Dragster 2.0 | 60V | Complete Bike | 33 mph | Stunt riding |
| EBOX 2 V2 | 72V | Complete Bike | 33 mph | Beginner riders |
EBOX 3.0 Specifications
Core Dimensions
- Wheelbase: 37.2 in (945 mm)
- Ground clearance: 10.83 in (275 mm)
- Seat height: 26 in (660 mm)
- Weight: 93 lbs (42.5 kg)
- Maximum load: 187 lbs (85 kg)
Suspension and Brakes
- USD upside-down front forks
- DNM 270 mm rear mono-shock
- Adjustable preload and rebound damping
- Dual 180 mm hydraulic disc brakes
Wheels and Drivetrain
- Front wheel: 14 × 2.27 in
- Rear wheel: 12 × 3 in
- 219H 120L DID chain
- 10T front / 70T rear gearing
Frame and Components
- V2 double-cradle high-strength steel frame
- EBOX3 race high-rise 6061-T6 handlebars
- EBOX dropper footpeg bar
- Black Megalith graphics package
- USB-ready wiring system
- Quick-release battery mount
Frequently Asked Questions
Does the EBOX 3.0 include a motor?
No. The standard package includes the rolling chassis and battery only. You can add the complete Electro & Co. build package during checkout.
How fast is the EBOX 3.0?
With the correct powertrain configuration, the EBOX 3.0 reaches speeds of over 55 mph.
How long does charging take?
The included 84V 6A fast charger recharges the battery in approximately 4 to 5 hours.
Is the battery removable?
Yes. The quick-release system allows fast battery swaps for convenience and extended riding sessions.
Does the EBOX 3.0 include a warranty?
The EBOX 3.0 includes a six-month parts warranty. Custom self-builds may void warranty coverage.
Final Thoughts
The EBOX 3.0 combines premium suspension, lightweight construction, and exceptional customization potential in one high-performance package.
Whether you want a race-focused electric motocross bike or a personalized electric pit bike, the EBOX 3 MX 72V platform gives you the freedom to build exactly what you need.
