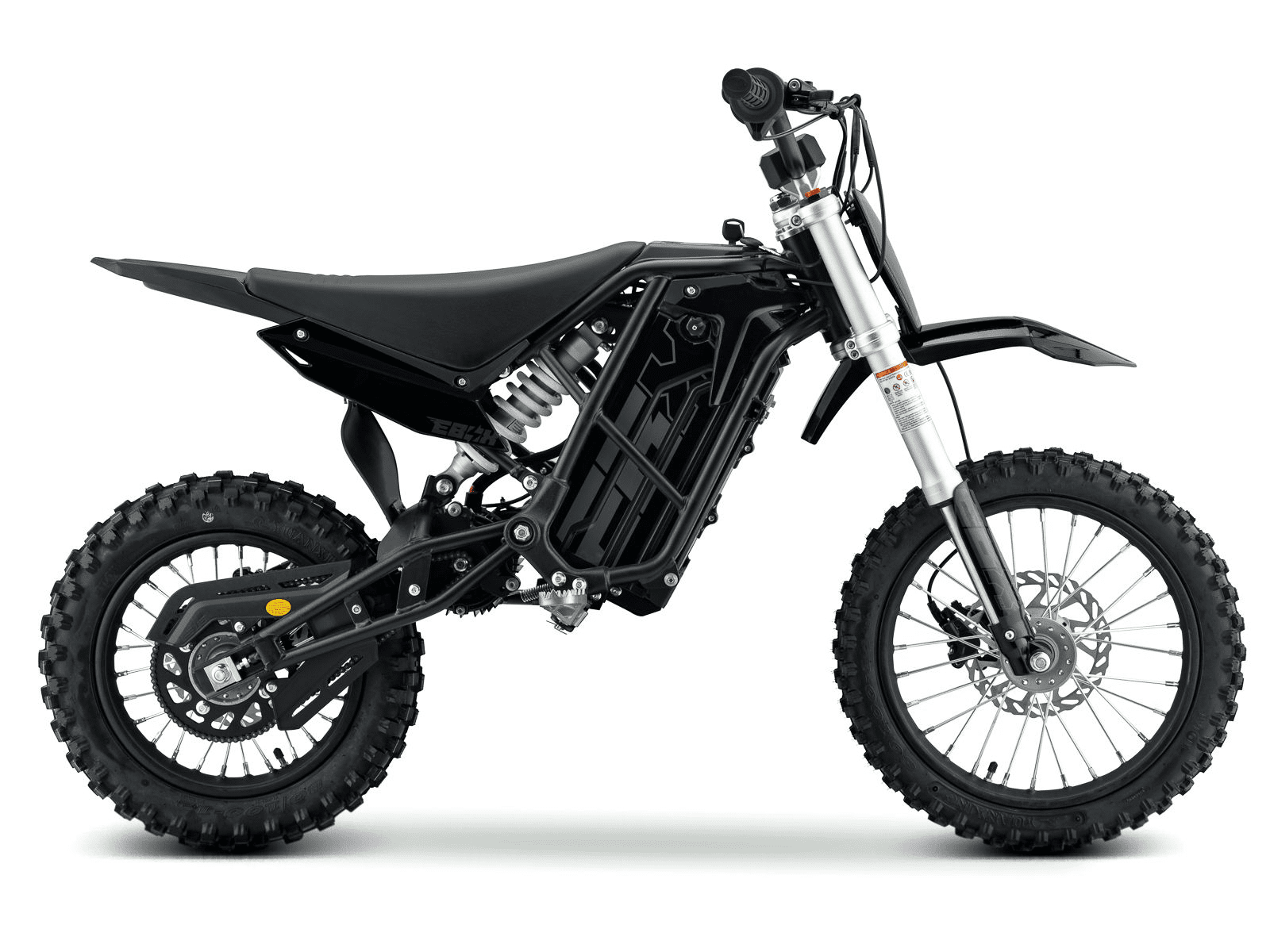

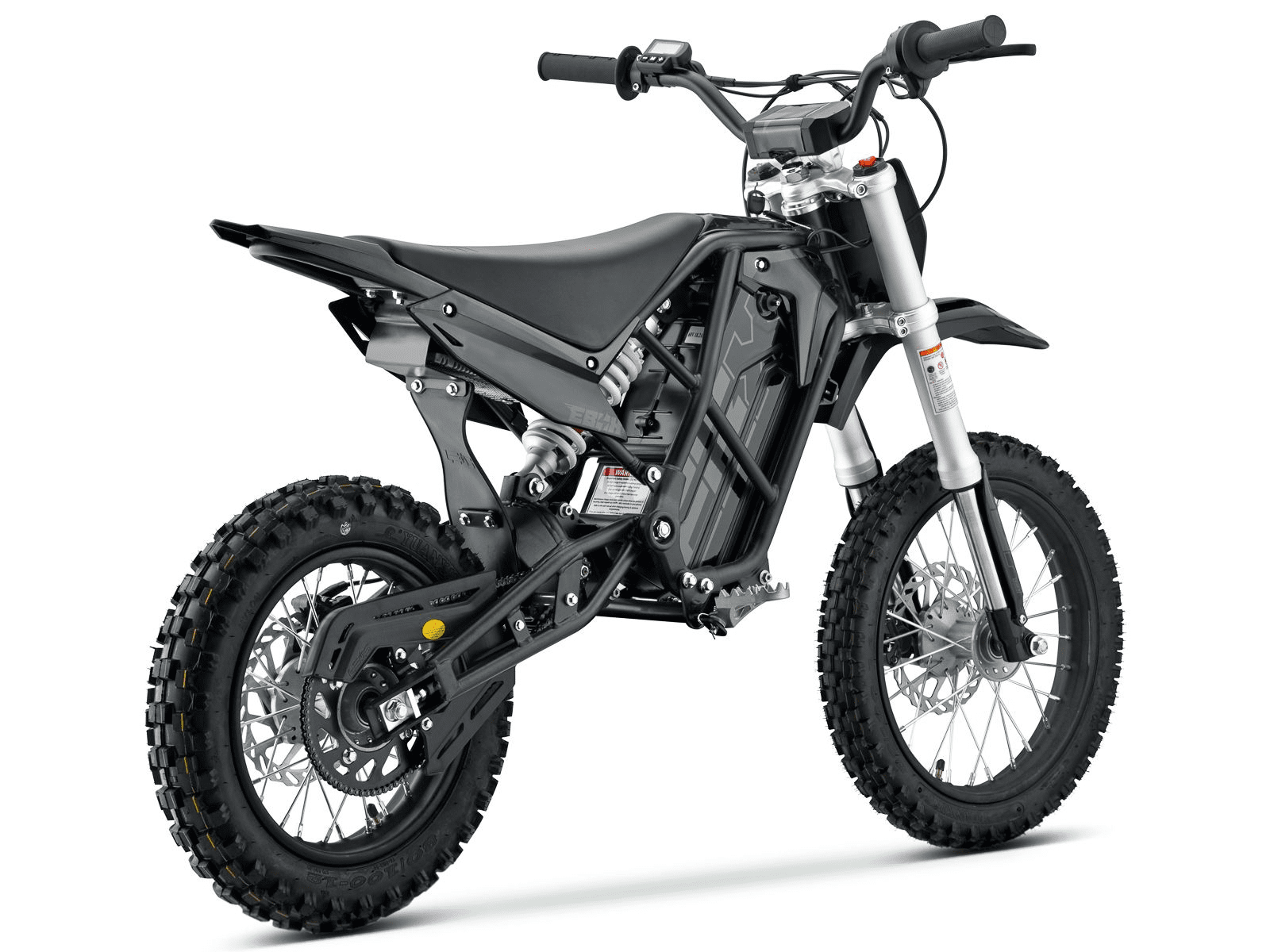

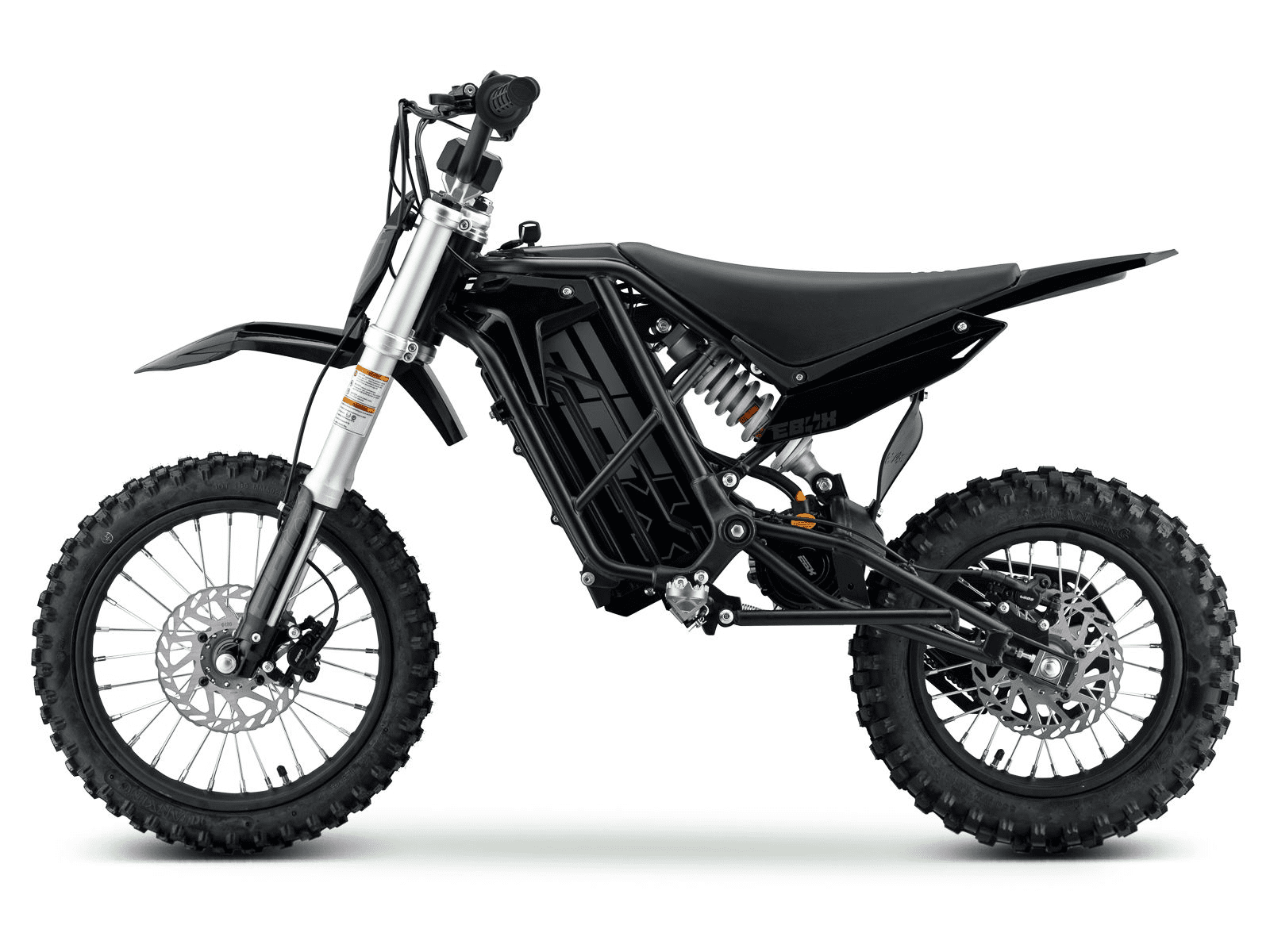

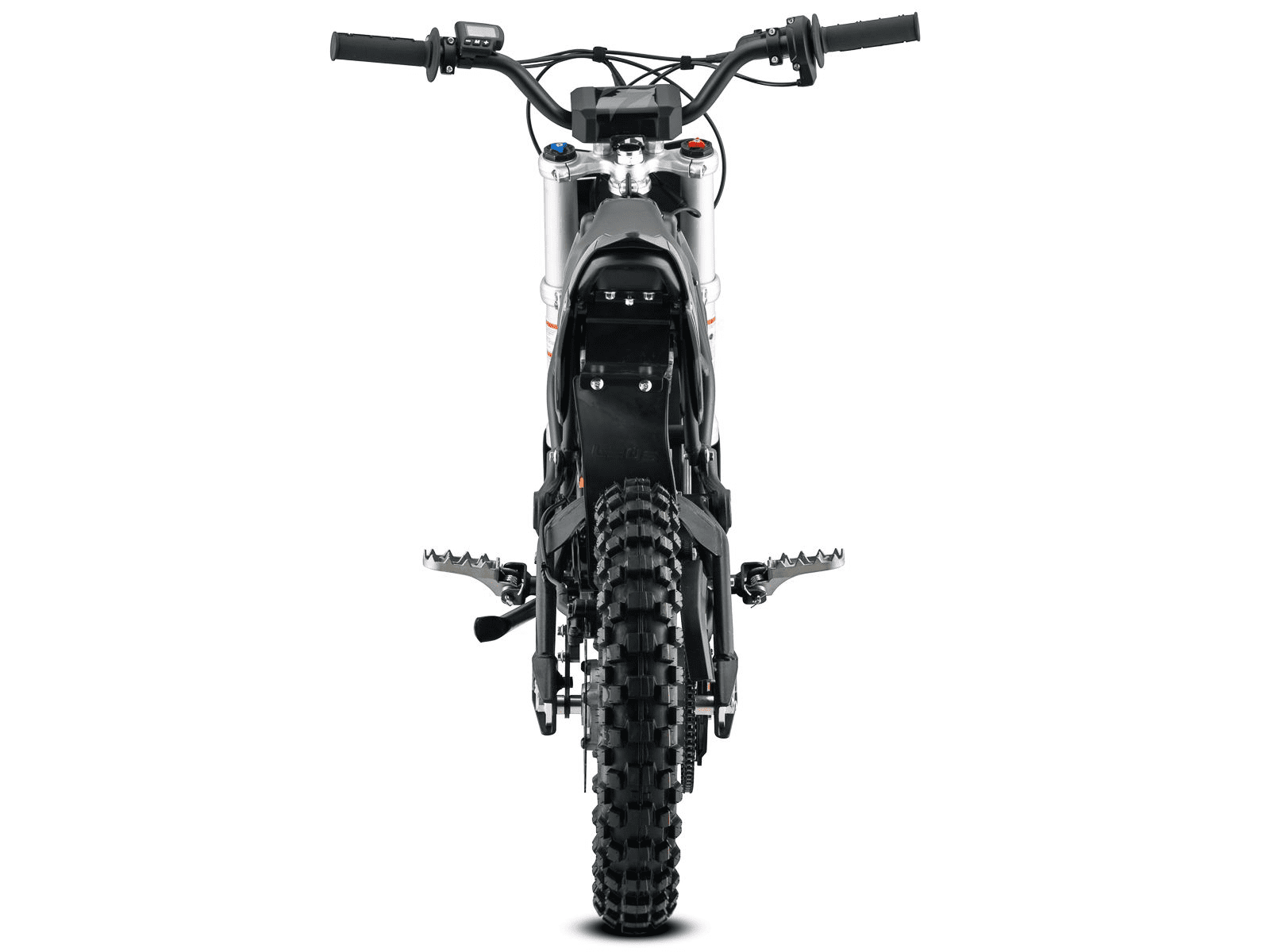

EBOX V3 60 Black

Description

The All-New EBOX V3 Is Here

The wait is over — the ebox-v3 60 black has officially landed. Riders asked for greater power, stronger acceleration, longer range, sharper handling, and higher top speeds. We heard every request and delivered even more with the all-new EBX powertrain.

This latest version packs larger batteries, an 80A Fardriver controller, and a high-output PMSM motor equipped with an encoder and real-time temperature feedback, pushing performance up to 6.3kW. Because the system uses an encoder instead of hall sensors, it eliminates common failure points while delivering ultra-precise coil timing. As a result, efficiency improves and performance hits its peak.

In addition, the EBOX V3 now includes a full-color TFT display featuring three ride modes and built-in fault diagnostics. To top it off, we’ve upgraded the warranty to one year or 1,000 miles on all powertrain components, including the battery, controller, and motor.

So what does all this mean for riders? Simply put — top speeds reaching up to 55 mph. Add fresh color options, updated tires, and the same compact design that fits easily in your car’s trunk, and the EBOX V3 proves that big performance can come in a small package.

---

Specifications

Frame Type: V3 Double Cradle
Front Wheel: 14 inches
Rear Wheel: 12 inches
Front Suspension: USD fork, 150mm travel
Rear Suspension: Progressive mono shock, 150mm travel
Bar Risers: Cast alloy, 36mm rise, Ø22.2
Front Brake: Hydraulic disc, e-moto spec (right lever)
Front Disc: 180mm, 4-bolt
Rear Brake: Hydraulic disc, e-moto spec (left lever)
Rear Disc: 180mm, 4-bolt
Front Tire: 60/100-14 dirt
Rear Tire: 80/100-12 dirt
Chain: 219H, 120 links
Gearing: 10T front / 70T rear
Maximum Load: 85 kg
Handlebar: EBOX high-rise, 6061-T6 alloy, one-piece
Seat: EBOX fat seat

---

Powertrain & Electronics

Motor: 60V EBX PMSM motor with encoder and temperature monitoring
Rated Output: 3.3 kW
Peak Output: 3.7 kW (5 hp)
Maximum RPM: 7,500
Battery: 60V 18.2Ah using 18,600 cells, QS8 connector, air breaker switch
Controller: 80A Fardriver
Throttle: SURRON-style full twist
Display: TFT odometer with three riding modes and fault-code diagnostics
Wiring: Sealed automotive-grade connectors
Charger: AC 100–240V input, 67.2V 3A output

---

Performance & Dimensions

Charging Time: 5–6 hours
Range: 21–25 miles (35–40 km)
Top Speed: 45 mph (72 km/h)
Ride Modes: Three externally selectable modes
Frame Design: Wide V3 frame (183mm) with race-inspired geometry, increased fork travel, heavier oil, and standard footpegs
Wheelbase: 980mm
Seat Height: 650mm

---

Warranty

Powertrain Warranty: 1 year or 1,000 miles (whichever comes first)
Parts Warranty: 6 months
